New coating thickness sensors save time
Sensor specialist OptiSense redisgend its contact-less thickness sensors that eliminates the need for any mounting bracket. It saves time during installation and simplifies assembly.
Thanks to their robust industrial housing, the new generation of OptiSense PaintChecker Industrial Line laser sensors can be operated even under harshest environmental conditions. The optimized thermal design enables continuous operation at high measurement rates. The „PaintChecker“ Industrial Line sensor is also available as a high-power version.
The greater the time pressure, the more valuable the savings in working time. This is particularly true in plant engineering in the coating industry. For project managers and integrators, the search for time-saving solutions is therefore essential. An intelligent example to speed up projects are the OptiSense PaintChecker Line and PaintChecker Angle sensors. For many plant engineers, time saving is an important factor when choosing sensors – especially as the miniaturized high-performance sensors from OptiSense not only pay off during initial installation, but also during operation.
Robust housing for new coating thickness sensors

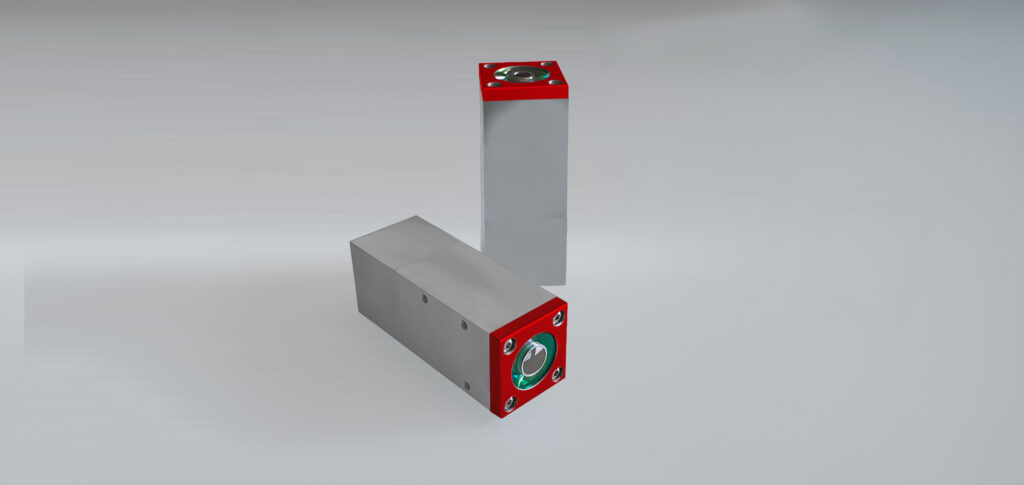

Thanks to their robust industrial housing, the new generation of OptiSense laser sensors PaintChecker Industrial Line and the folded version PaintChecker Angle can be operated even under harshest environmental conditions. And replacing the sensors runs smoothly and quickly as well without the need for complex brackets.
The sensors feature a diode laser as a light source − with all the advantages of semiconductor technology, such as long durability, high efficiency and absolute vibration resistance. The coating thickness measurement range is from 1 to 1,000 μm.
The optimized thermal design enables continuous operation at high measurement rates of up to 2.5 Hz. The laser sensors meet IP 50 rating, weigh 330 g and measure 38 x 36 x 104 mm for the „PaintChecker“ Line and 77 x 36 x 65 mm for the PaintChecker Angle sensor. The Industrial sensors are also available as high-power versions. The models equipped with „LARES“–technology are eye-safe.
The PaintChecker Industrial Angle sensor is equipped with special optics with a folded beam path. This results in a particularly compact design that fits even in the tightest spaces. The tiny device is just 77 mm long and is also available as a high-power version.
More information: www.optisense.com
